R-C Scientific Instrument Company “Dosifilm” Badge (Early to mid 1950s)

Dosifilm film dosimeter
Dosifilm film dosimeter

“Dosifilm” was the name given to the film badge produced by the R-C Scientific Instrument Company of Playa del Rey, California. The assigned date (early to mid 1950s) is based on the fact that a very similar version of this badge was pictured in an advertisement in the November 1952 issue of Nucleonics.

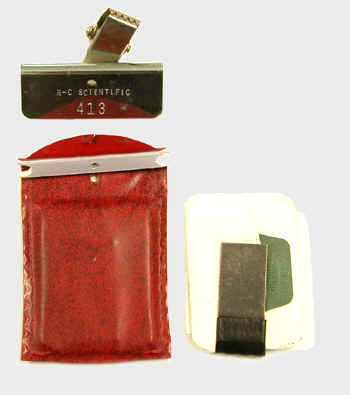

Two film packets (Dupont 558 dental film) are located inside a maroon-colored plastic (polyvinyl chloride) pouch held shut at the top with a nickel plated metal tab.

Inside the pouch, the packets are held together with a lead-silver clip that serves as a filter.

When exposed to X-rays, the number on the metal tab will appear on the developed film.

Size: 1.75" x 2.25"

Weight: 0.5 oz

Donated by Ron Kathren.

References

  • Atomic Energy Commission Radiation Instrument Catalog No. 3, 1952. Page PF-9A.
  • Nucleonics, November 1952, p. 129.
