Landsverk Model L-50 Finger Chamber (ca. 1950-1955)

Landsverk L50 dosimeter
Landsverk L50 dosimeter

Manufactured by the Landsverk Electrometer Company of Cincinnati, Ohio.

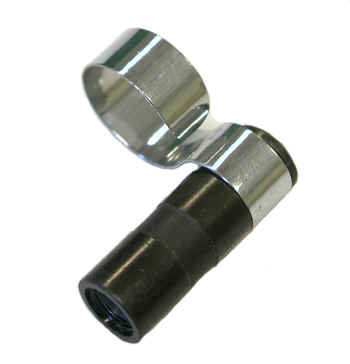

This indirect reading dosimeter was designed to measure the hand exposures (in the 0-2 R range) of workers handling gamma ray or X-ray sources. If desired, it could be attached to a clip or chain rather than a ring. For some odd reason (most likely it was a mistake), Landsverk also used the Model L-50 designation for a direct reading pocket dosimeter.

Size: 1 9/16” x 0.5”

Weight: 0.2 oz.

Response: Independent of energy from 75 keV to 1.5 MeV

Charger/reader: Landsverk Model L-60

References

  • Nucleonics, February 1951 p. 92.
  • Atomic Energy Commission Radiation Instrument Catalog No. 2, Part 2, Page PIC-18A, page date June 1950.
