Model of Fuel Elements for the Obninsk APS-1 Reactor
Although a couple of nuclear reactors in the United States had previously generated token amounts of electricity, the world's first nuclear power reactor was the APS-1 reactor in Obninsk which started operations in December 1954 (it shut down 48 years later)! The difference was that the APS-1 reactor was designed to produce electricity.

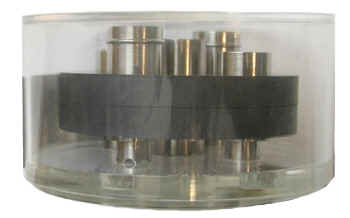

The 5 MW reactor employed graphite as the moderator and light water as the coolant. The model shows four annular fuel elements surrounding a central tube. The latter might have been used to accommodate a control rod. Coolant would flow through the channel in each fuel element.

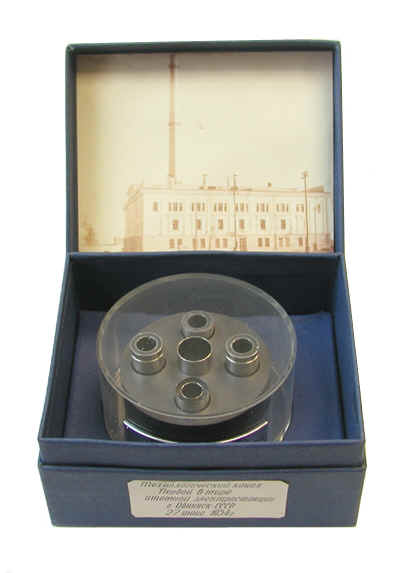

The photo shows a model that was presented to Dr. Alvin Weinberg of the fuel elements used in the APS-1 reactor.
The text on the label reads: "The technological channel of the world's first nuclear power station t(own of) Obninsk-USSR 27 June 1954 y(ear)."
I would like to thank Valerius Samoylenko for the translation.
Donated by Dr. Alvin Weinberg.
References
- Alvin Weinberg. Personal communication.
- Jožef Stefan Institute, Jamova 39, SI-1001 Ljubljana, Slovenia. ICJT Training Center website.
